Data Track Process Instruments

Data Track is a leading manufacturer of process control instrumentation. Our product range includes digital panel meters, DIN rail mounted controllers, PID control, signal conditioning, remote data acquisition for temperature, pressure, force, load, displacement, alarm and control.

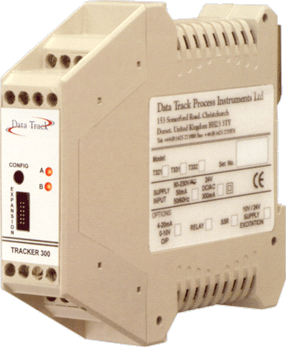

Data Track 300 Series Tracker The Tracker 300 series isa low cost Signal Conditioner, Trip Amplifier and PID Controller, for use in a variety of process applications. Its small size enables high packing density on standard TS35 DIN rail. A built in power supply, transmitter excitation and serial RS485 interface provides genuine single loop integrity with distributed data acquisition and control.
Data Track Large Digital Process Displays Tracker 290 Unlike conventional large process displays, the sensor input, transducer supplies, optional alarm relays and analogue outputs are all in the remote measurement module allowing easier installation and shorter sensor cable lengths. Only AC power and a two-core communication cable need to be wired to the display. The remote measurement module, which can be mounted on a standard T35 DIN rail locally to the point of measurement, can be up to 1.2 km from the display.
Data Track The Tracker Series Data Track Tracker Series, Digital Panel Meters, Data Loggers, Data Acquisition Software Shortform catalogue of low cost, general purpose instruments.
Data Track Digital Panel Indicators A Complete Range of Universal Input Digital Panel Indicators for Temperature and Process Measurement.
Data Track Load Cell & Weighing Indicators Tracker Load Cell And Weighing Indicators Tracker 240 Series are specifically designed for use with load cell transducers and for weighing applications.
Data Track LVDT Indicators The Tracker 260 Series of LVDT Indicators are designed specifically for use with LVDT transducers.
Data Track Melt Pressure Indicators The Tracker 250 Series Melt Pressure Indicator is designed specifically for use with Melt Pressure Transducers.
Data Track Low Cost Digital Panel Meter The Tracker 211 Digital Panel Meter is designed for cost conscious "no frills" applications in demanding industrial environments.
Data Track 1/32 Din Digital Panel Indicator Digital Panel Indicator 1/32 DIN Tracker 232 from Data Track, low cost, universal input, compact size, alarm/relay options/ low voltage option, small size.
Data Track Tracker 2610 Temperature & Humidity Monitor The Tracker 2610 is designed to monitor the ambient temperature and humidity of equipment rooms. The unit plugs into a serial data port of the Tracker range of intelligent peripherals and contains its own temperature and humidity sensors. It is provided with a 5-metre cable to allow it to be wall mounted in a convenient location within a room and is powered from a 5-volt line on the Tracker serial interface.

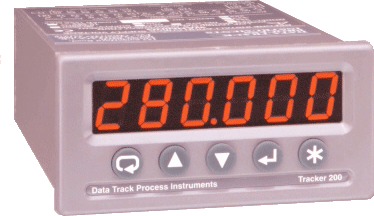

Data Track Digital Panel Indicator 280 Series The Tracker 280 Series of indicators are designed for demanding industrial applications for use with sensors that give AC or pulse outputs. The Tracker 280 Series can be used for measurement and display only applications or can act as a transmitter using the analogue output. The alarm option allows the Tracker 280 to be used as an alarm trip or batch controller. The unit is fitted with a serial communication interface as standard allowing it to be used as a front end device for PC based systems.

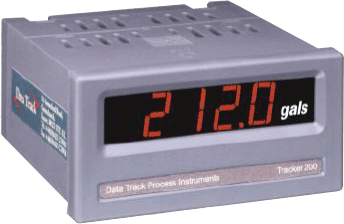

Data Track Tracker 212 Universal 5-Digit, Process & Temperature Indicator The new Tracker 212 is an all-in-one, attractively designed and priced unit. It has been engineered as a universal process and temperature indicator with user linearization features for 4-20 mA signals.
